Burlington Northern Santa Fe Railway
Southwest Division
Seligman Subdivision

Mohave County, AZ
Last Observation Date
Lat 35° 03' 51" N
26 Nov 2002
Lon 114° 07' 03" W

Radio Frequencies
Road
160.650 MHz
ATCS
897.8875 MHz (MCP)

936.8875 MHz (BCP)


Naming convention according to author's rules and logic. Your rules might be different. Vive la difference!

DIRECTIONS

Take Arizona I40 to exit 37. Head east on Griffith Rd (turns to dirt immediately east of the offramp) about 0.4 mi to a north-south frontage road. Turn left (north) and continue about 2.7 miles to the control point. This road is probably passable by 2WD vehicle but your mileage may vary.


COMMENTS

The dirt road out to the control point is not heavily trafficked. While it's about three miles back to the interstate, be sure to bring water, a spare tire, tools, hat, etc. During the summer the hike can be lethal if you're not prepared.

The mountains immediately to the east are the Hualapais, with a maximum elevation of over 8400'. A BNSF radio site is atop this range at the north end providing road, pbx and ATCS channels.

There may also be another radio site nearly due south in the Mohave Mountains at Crossman Peak. This might also be ATCS (or maybe it's the only one?)

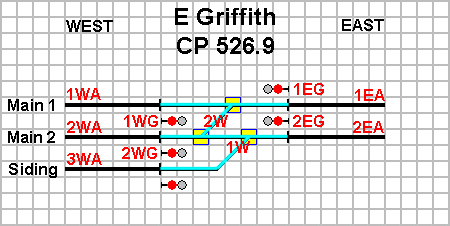

INDICATIONS
CP Object
Index
Definition
ATCS Mnemonic
Bit Location

Switches 1 Normal 1NW K11
    Reverse 1RW K12
  Pair 2 Normal 2NW K13
    Reverse 2RW K14

Tracks 1 W Approach 1WA K34
    E Approach 1EA K35
    In Plant 1T K31
  2 W Approach 2WA K36
    E Approach 2EA K37
    In Plant 2T K32
  Siding W Approach 3WA K38
    In Plant 3T K33

Signals Track 1 W Approach 1WG K21
    E Approach 1EG K22
  Track 2 W Approach 2WG K25
    E Approach 2EG K24
  Siding W Approach 3WG K23

Other   Track 1 Plant Lock $1PL K28
    Track 2 Plant Lock $2PL K27

Indication Bits currently unknown or unused: K15, K16, K17, K18, K26, K41, K42, K43, K44, K45, K46, K47, K48, K51, K52, K53, K54, K55, K56, K57, K58

CONTROLS

CP Object
Index
Definition
ATCS Mnemonic
Bit Location

Switches 1 Normal 1NW C11
    Reverse 1RW C12
  Pair 2 Normal 2NW C13
    Reverse 2RW C14

Signals Track 1 W Approach 1WG C21
    E Approach 1EG C22
  Track 2 W Approach 2WG C25
    E Approach 2EG C24
  Siding W Approach 3WG C23

Other   Track 1 Plant Lock $1PL

unk

    Track 2 Plant Lock $2PL unk

Control Bits currently unknown or unused: C15, C16, C17, C18, C26, C27, C28, C31, C32, C33, C34, C35, C36, C37, C38
